Product Introduction

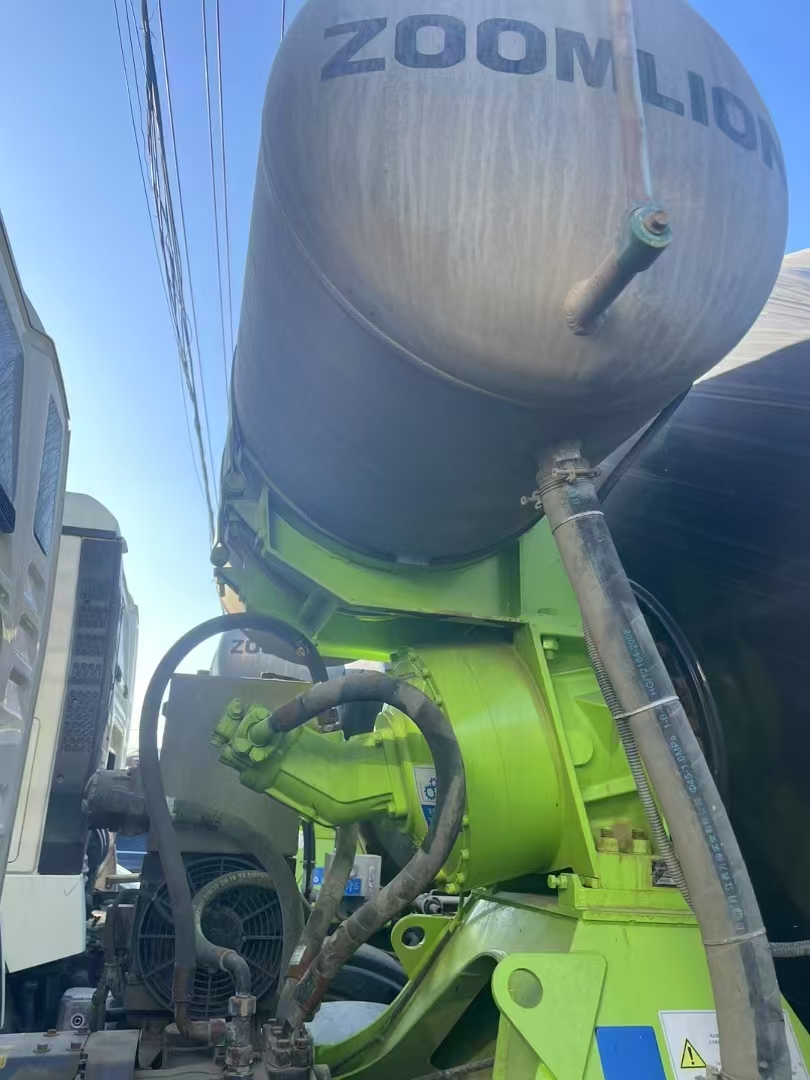

A concrete mixer truck is a special truck that consists of a special chassis, a mixing tank, a feeding and discharging device, a water supply system and a hydraulic system. It is used to transport concrete for construction.

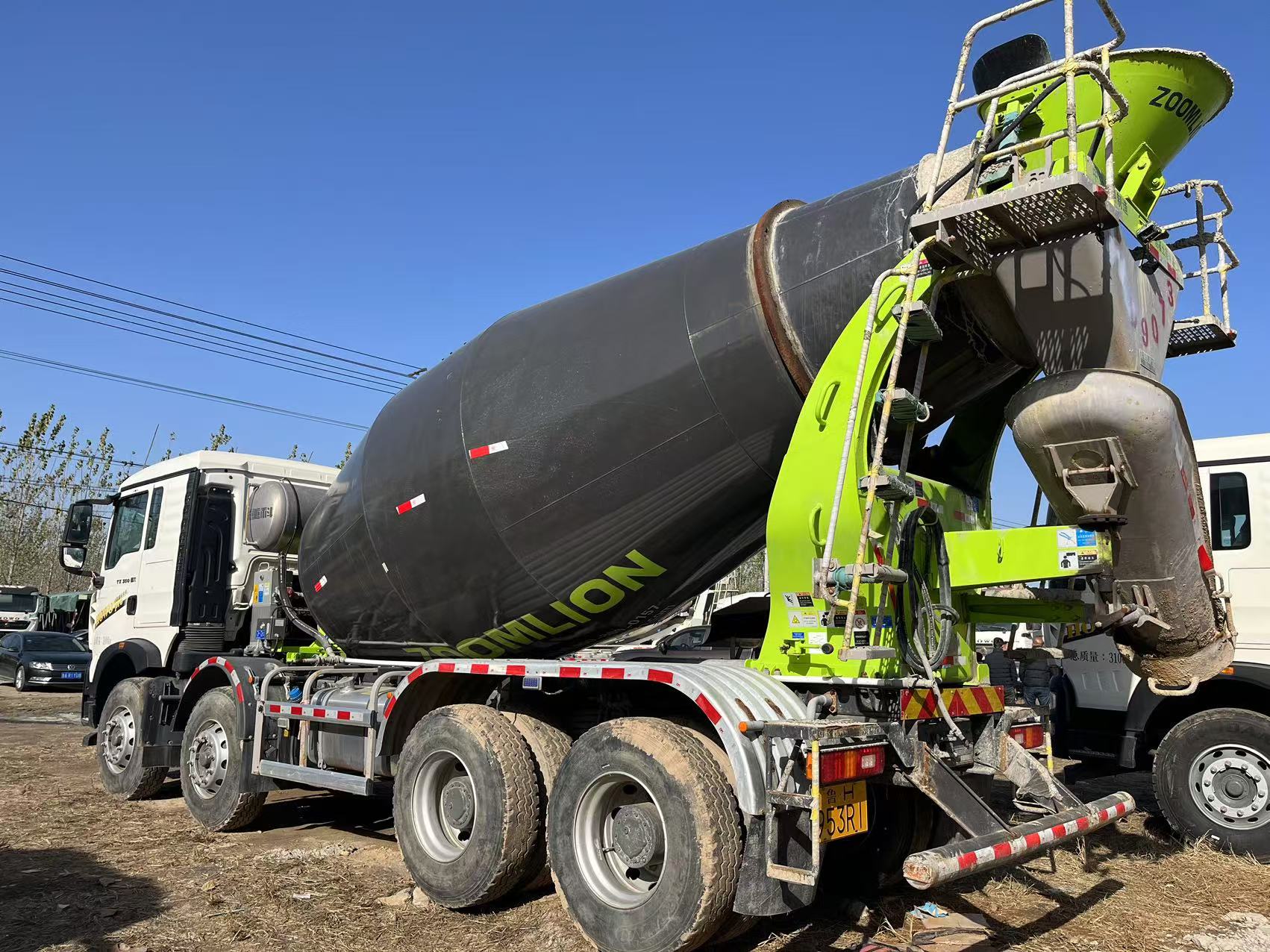

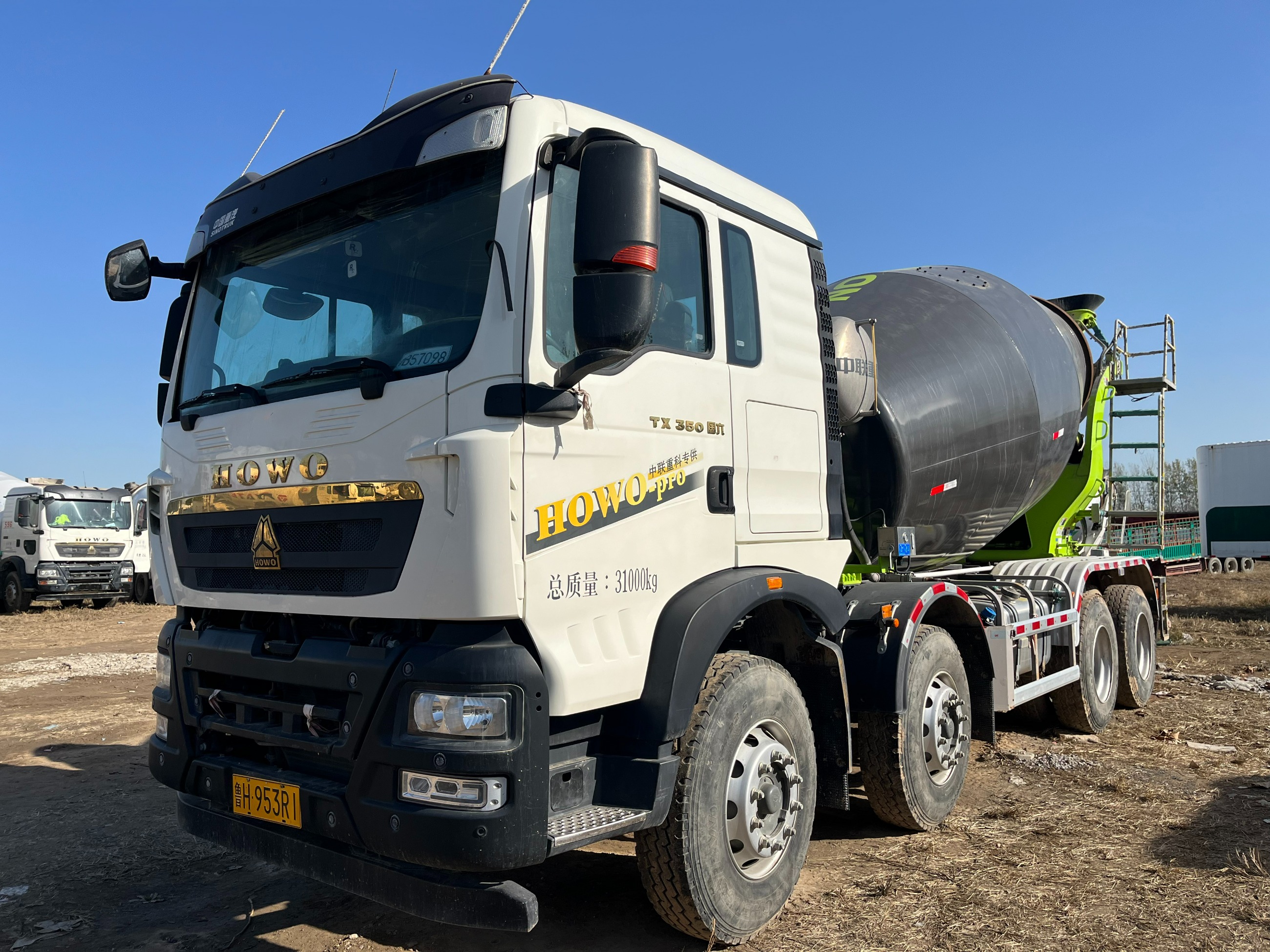

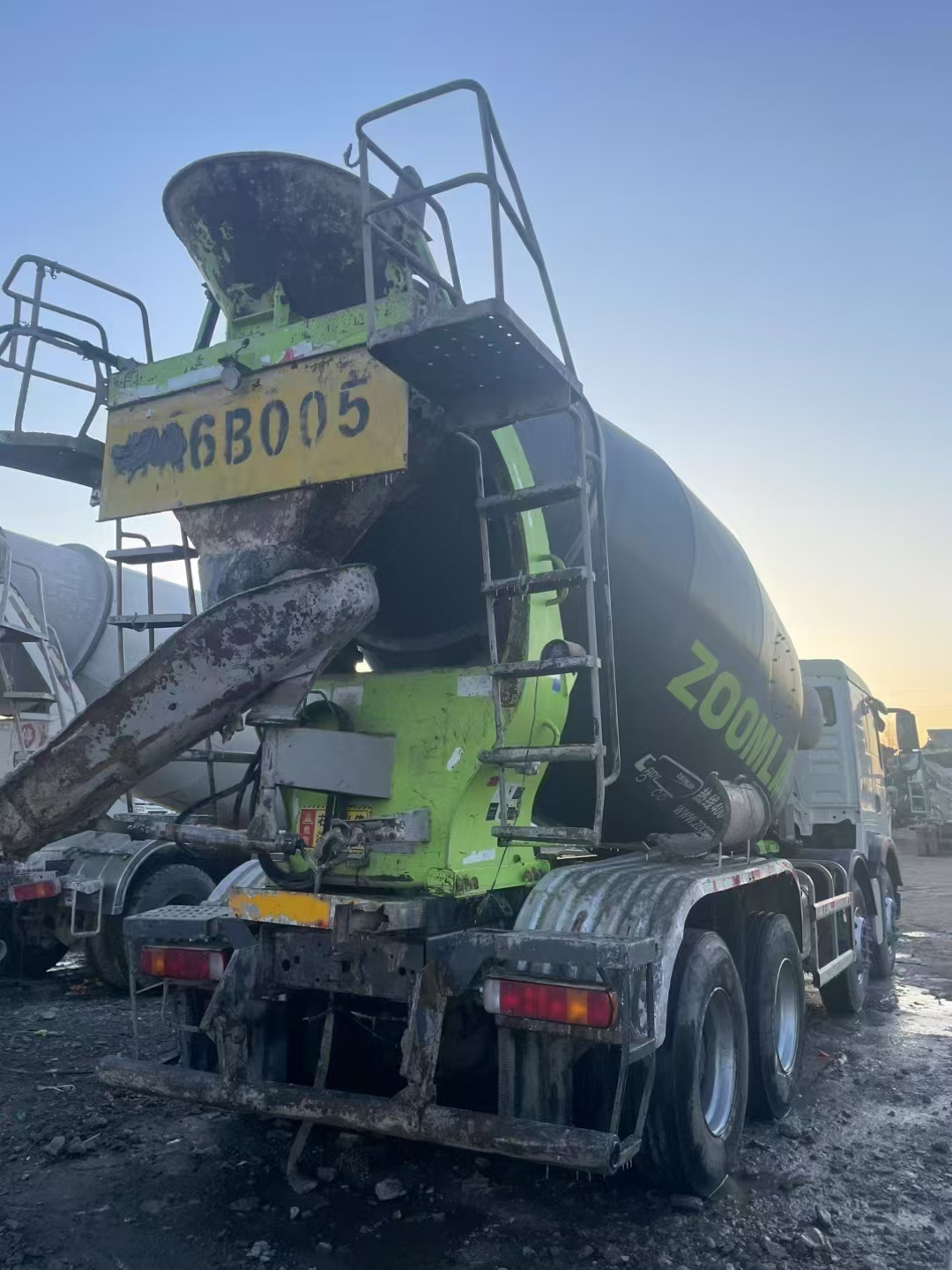

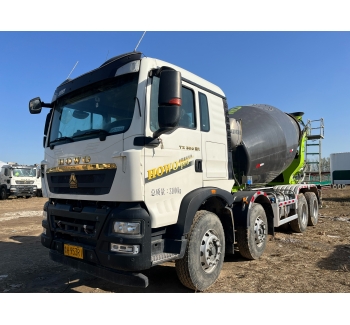

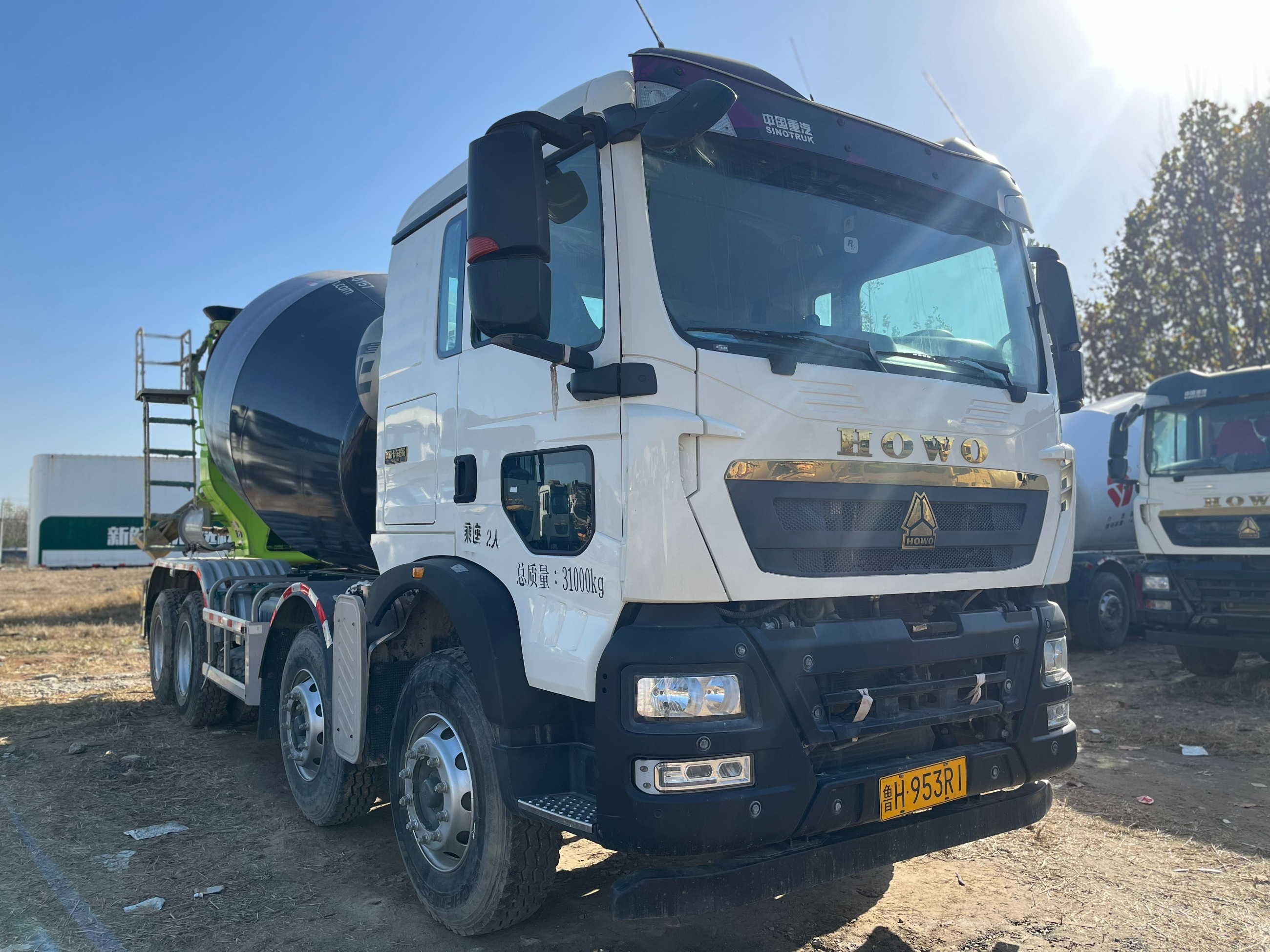

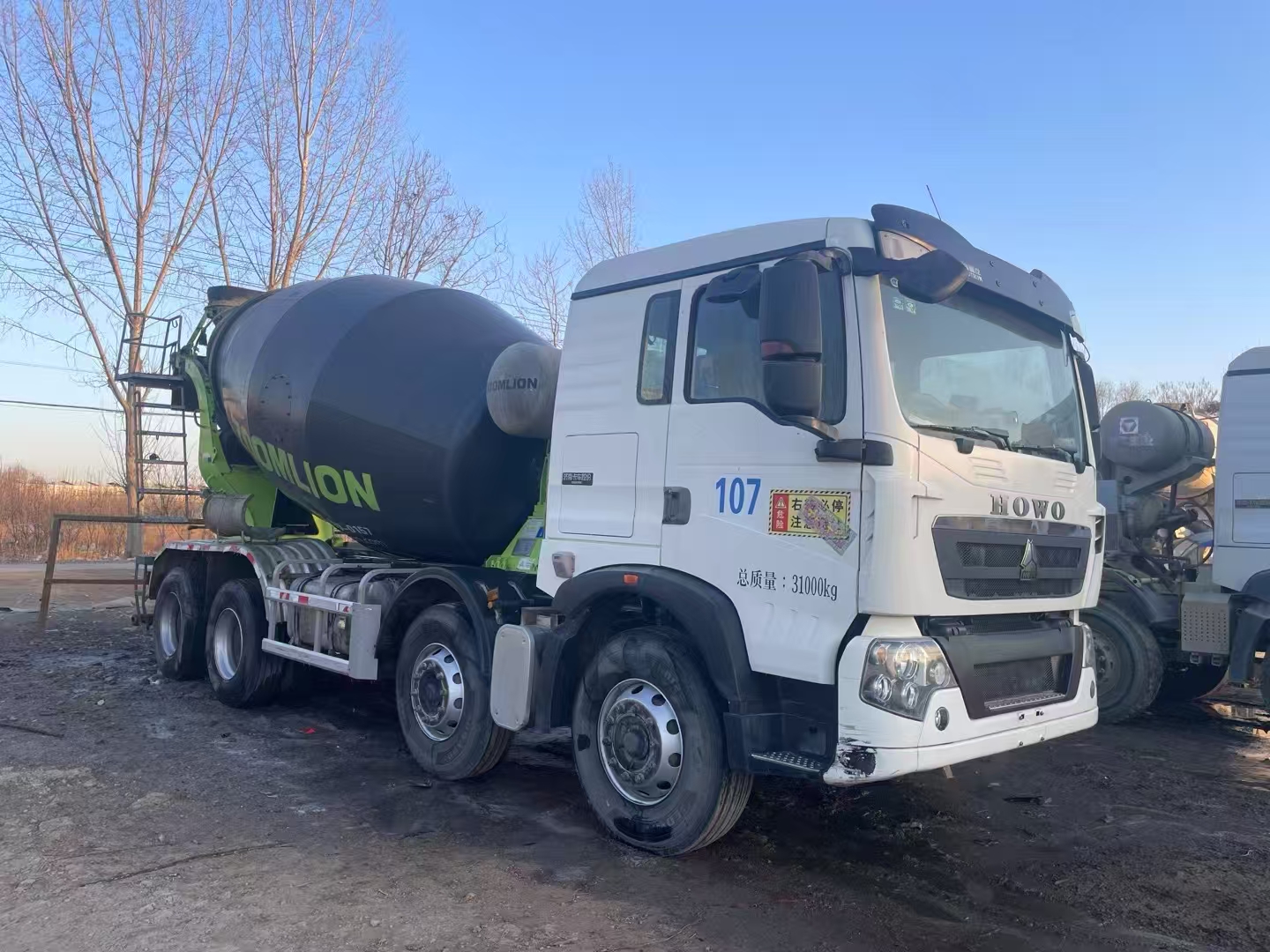

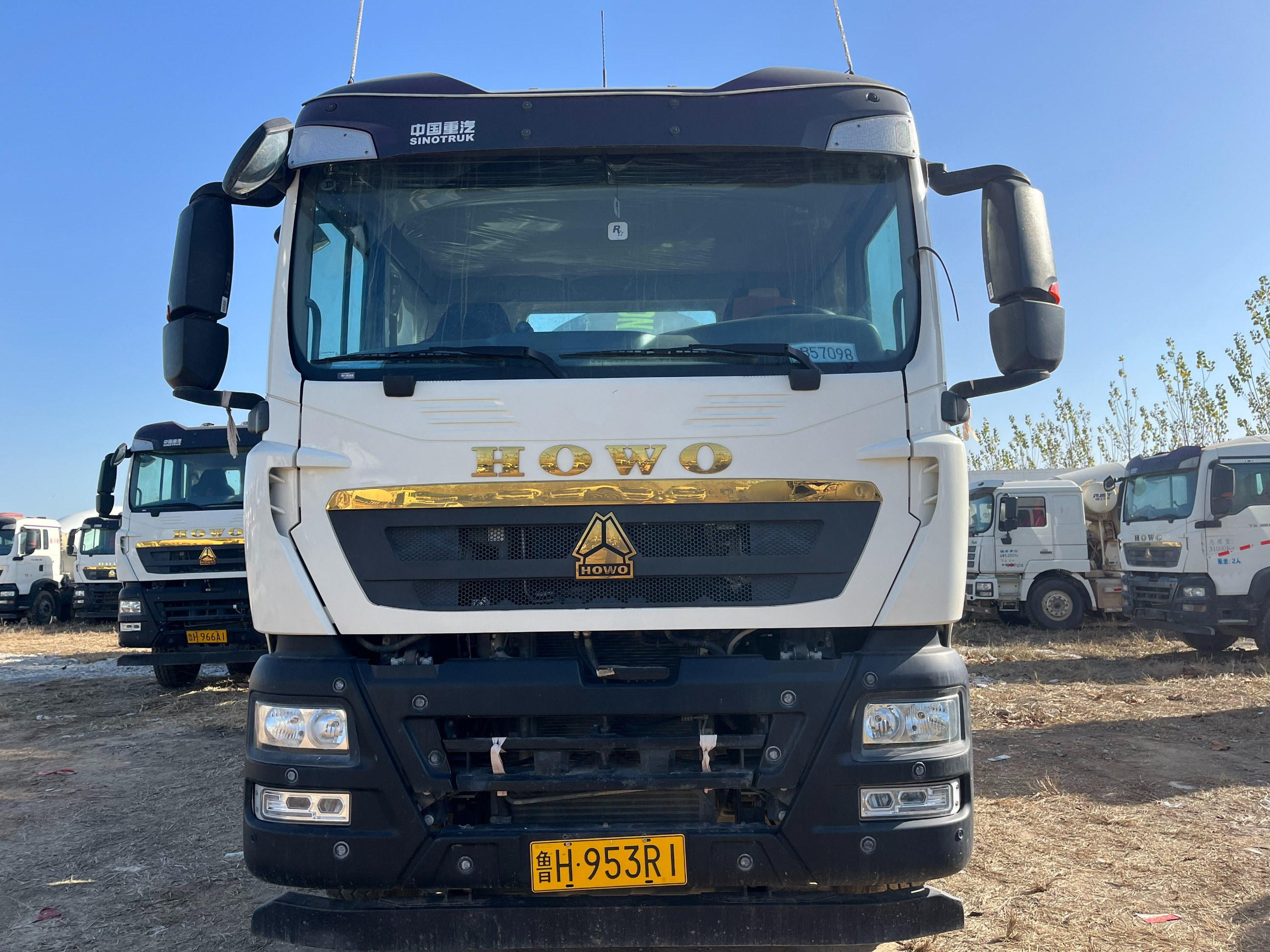

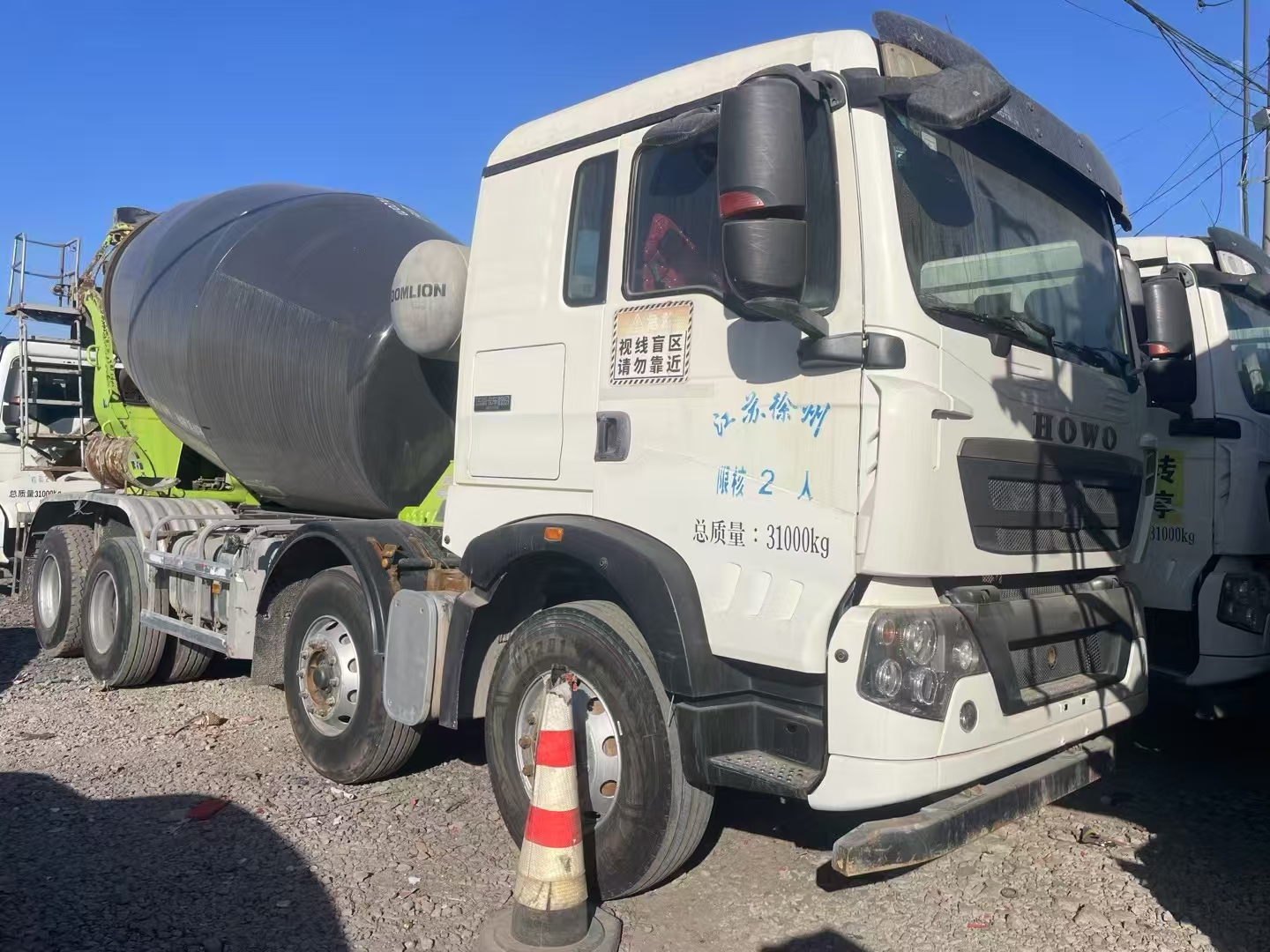

This 8x4 sinotruk howo used cement mixer lorry for sale is efficient, stable, durable and economical, and is an indispensable and important truck in the concrete transportation process.
Product Parameters
| Model: | ZZ5317GJBN306GE1H |
| Drive wheel: | 8×4 |
| Wheelbase: | 1800+3050+1350mm |
| Engine: | Sinotruk MC07.34-50 |
| Gearbox: | Sinotruk HW15710L |
| Body length: | 10170mm |
| Body width: | 2550mm |
| Body height: | 3999mm |
| Front wheel base: | 2022/2022mm |
| Rear wheel base: | 1850mm/1850mm |
| Vehicle weight: | 16.36T |
| Gross Vehicle Weight: | 30.51T |
| Engine parameter | |
| Engine type: | Sinotruk MC07.34-50 |
| Engine brand: | Sinotruk |
| Number of cylinders: | 6 |
| Fuel Type: | Diesel |
| Displacement: | 6.87L |
| Emission standard: | Euro V |
| Maximum horsepower: | 340 HP |
| Maximum output power: | 248kW |
| Cabin parameter | |
| Permitted passenger number | 3 |
| Row of seats | A row and a half |
| Upper Body Parameter | |
| Mixing Capacity | 7.5M3 |
| Transmission parameter | |
| Transmission model: | Sinotruk HW15710L |
| Shift mode: | Manual |
| Tyre | |
| Number of tires: | 12 |
| Tire Specifications: | 12.00R20 18PR |
